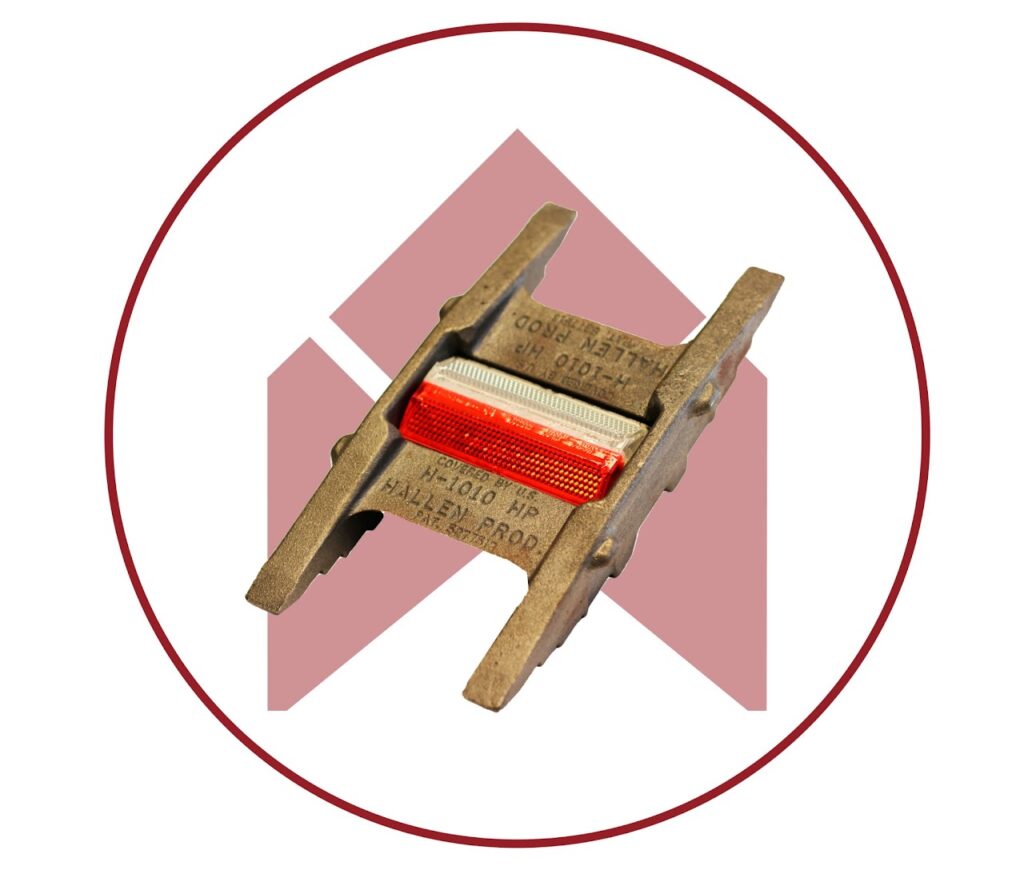

H1010HP High Profile

Pavement must be cut to the dimensions as shown.

Minimum 65 Horsepower saw is recommended for making pavement cuts.

The saw is to be fitted with grouping of 18″ diameter saw blades witch spacers, nested between 20″ diameter saw blades with spacers as recommended by saw blade manufacturer.

Each pavement cut must be inspected prior to epoxy/marker installation per the following:

•   Each casting must be centered lenghtwise and should have 1/8″ side-to side clearance after insertion in pavement cut.

•   All 4 leveling lugs must contact the pavement surface.

•   The extreme ends of all castings must be below pavement surface after insertion in pavement cut.

The pavement cut must be completely dry and free of dust, dirt or any other material that will interfere with the adhesive bond.

2 component epoxy adhesive is to be used to fill the pavement cut to within 3/8″ of top of pavement. The place marker into the epoxy filled pavement cut-nothing 4 tabs must be in contact with pavement surface, and epoxy shuld be level with pavement surface. Epoxy should be prevented from blocking the reflector lens.

 Any epoxy inadvertently spilled/dripped on the active reflector face must be removed immdiately.
